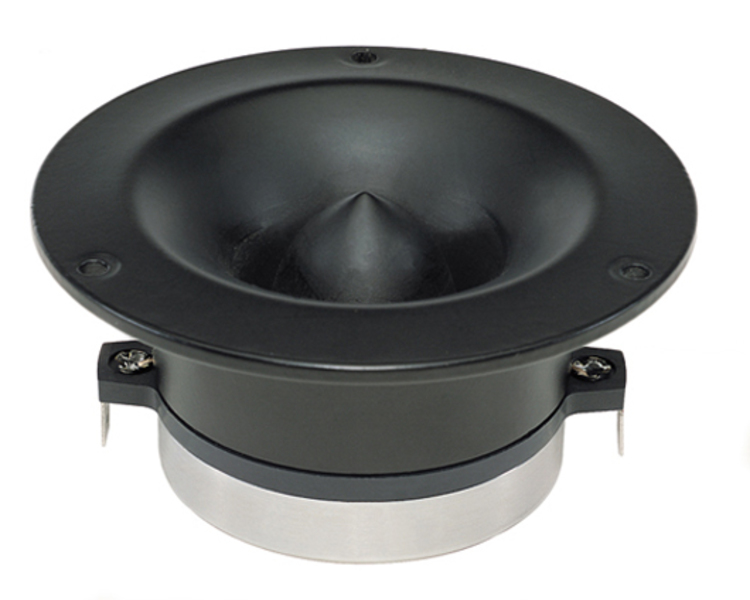

DE35
CelectronicUSA

DE35

Precio de oferta$87.00

Specifications

  • Nominal Impedance8 Ω
  • Minimum Impedance7.0 Ω
  • Nominal Power Handling125 W
  • Continuous power handling250 W
  • Sensitivity (1W/1m)3108.0 dB
  • Frequency Range3.5 - 18.0 kHz
  • Recommended Crossover45.0 kHz
  • Voice Coil Diameter32 mm (1.25 in)
  • Winding MaterialAluminium
  • Inductance0.1 mH
  • Diaphragm MaterialPolyester
  • Flux Density1.3 T
  • Magnet MaterialNeodymium Inside Slug

Mounting and Shipping Info

  • Three M4 holes 120° on 91 mm (3.6 in) diameter
  • Overall Diameter100 mm (4.0 in)
  • Depth46 mm (1.8 in)
  • Net Weight0.7 kg (1.5 lb)
  • Shipping Units1
  • Shipping Weight0.73 kg (1.6 lb)
  • Shipping Box105x105x65 mm (4.13x4.13x2.56 in)
